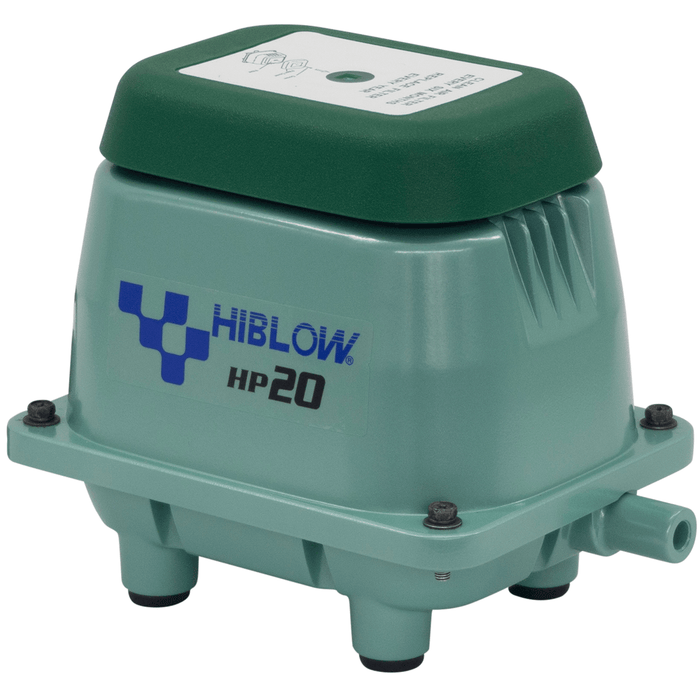

Hiblow HP Series Linear Diaphragm Air Pumps
HP-20 120V
$129.46
Sale price
$129.46
Regular price
$184.95
Skip to product information
Hiblow HP Series linear air pumps boast effective aeration and efficient operation. For over 30 years, these reliable, energy-efficient, low-noise pumps have been used in backyard ponds, aquaculture, and wastewater treatment applications. Every HP Series air pump features thermal overload protection to guard against overheating and pump damage.
20-40 Specifications 60-80 Specifications 100LL-120LL Specifications 150-200 Specifications Manual
Hiblow HP Series Linear Diaphragm Air Pumps
$129.46
Sale price
$129.46
Regular price
$184.95
- Oil-free operation eliminates danger of contamination in your pond!
- Linear diaphragm design for quick, inexpensive repair of worn pumps
- Includes pressure tap location for external alarm sensor (Excludes HP-20)
- 120V / 60Hz pumps are UL Listed (Excludes HP-20)
- Outside diameter of outlet is 18mm (0.71")
- Models HP-20 to HP-120LL come with a rubber elbow adapter that fits 1/2" or 5/8" barb or slide over weighted 3/8" ID tubing.
- Models HP-150 to HP-200 come with a straight rubber adapter that fits 3/4" barb (or can be cut to fit 1/2" or 5/8" barb) or slide over weighted 3/8" ID tubing. 3/4" direct burial will connect to the provided rubber elbow with 3/4" barb to barb adapter #1429-007. Heat burial tubing and clamp as recommended.
- 6' power cord
- 1 Year Manufacturer Warranty: https://www.hiblow-usa.com/warranty/
- 230v models Available as a special order, please inquire with us directly through Sales@PlayItKoi.com to place an order for a 230v model.
| Model | Rated Air Flow / Loading Pressure |
Maximum Operating Pressure |
Watts | Noise |
Wt | Dimensions |
|---|---|---|---|---|---|---|
| HP-20 | 20 Lpm @ 9.8 kPa | 15kPa / 2.1psi | 17 | 32 dB | 7lb | 8" x 5.5" x 6.75" |
| HP-40 | 40 Lpm @ 12.8 kPa | 20kPa / 2.9psi | 38 | 32 dB | 13lb | 9" x 6.75" x 7.5" |
| HP-60 | 60 Lpm @ 14.7 kPa | 25kPa / 3.6psi | 51 | 35 dB | 15lb | 10" x 7" x 7.75" |
| HP-80 | 80 Lpm @ 14.7 kPa | 71 | 36 dB | |||
| HP-100LL | 100 Lpm @ 17.7 kPa | 30kPa / 4.3psi | 75 | 42 dB | 20lb | 11" x 8" x 8.75" |
| HP-120LL | 120 Lpm @ 17.7 kPa | 100 | 42 dB | |||
| HP-150 | 150 Lpm @ 20.0 kPa | 30kPa / 4.3psi | 155 | 47dB | 20lb | 11" x 8" x 8.75" |
| HP-200 | 200 Lpm @ 20.0 kPa | 250 | 48dB |
20-40 Specifications 60-80 Specifications 100LL-120LL Specifications 150-200 Specifications Manual
